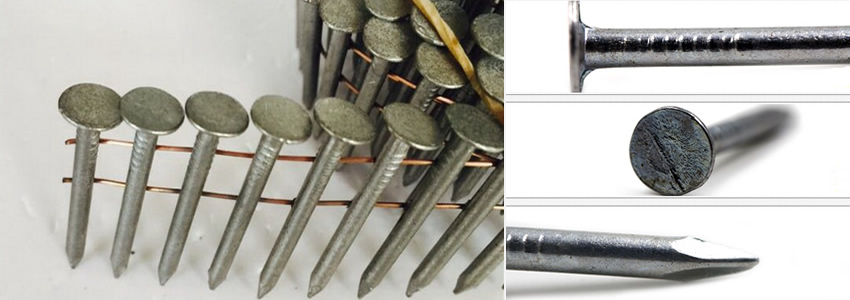

Steel Wire Collated Coil Nails for Waterproof Asphalt Shingle Roofing Building Material Secure Fastening Uses. Electro Galvanized or H.D.G. Treated Surface, Coiled at 14 Degree, 15 Degree and 16 Degree for Pneumatic Gun Operation
Clavos supplies galvanized iron wire coiled roofing nails collated at 14 to 16 angles designed for use with pneumatic roofing guns. The collated nails are zinc plated galvanised to resist weathering and corrosion, also waterproof treated for roofing waterproof tarpaulins fixed. Steel wire nail coils are popularly used building materials for fastening asphalt shingles, tarpaulins and roof tiles in roof construction, reroofing and roof repairing. The head types can be common round flat head and umbrella head. Roofing nails shanks can be smooth, twisted, ringed or screwed. Stainless steel roofing fasteners are also available upon request at higher cost. Also named asphalt nails for securing shingles to roofing jobs. Stainless steel and aluminum roofing nailer screws also available upon request.

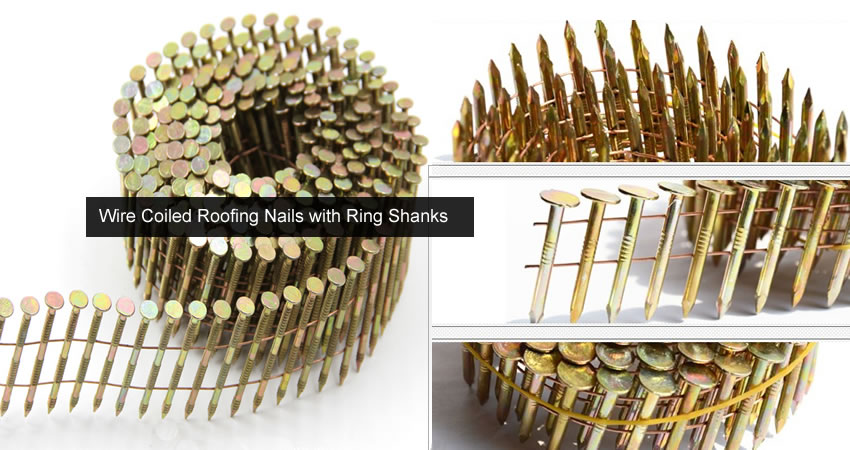

15 Degree Screw Shank Bright Common Wire Roofing Nails for Construction Operated with mechanical or pneumatic tools:
Material：Iron Q195, Q235
Type：Flat Head Coil Nail
Wire Diameter： 2.1-3.8mm (0.083"-0.150")
Length： 25-130mm(0.985"-5.122")
Shank： Screw Shank
Surface Treatment：Polished, galvanized or hot dipped galvanized, hot dipped galvanized
Nail Point：Diamond
Collating Angle： 15 degree
Size: 1/2”-6”
Diameter: BWG6-20
Specification Details:
| Nail Length | Diameter | |
| Inches | mm | BWG |
| 0.5" | 12.7 | 20/19/18 |
| 0.75" | 19 | 19/18/17 |
| 1" | 25.4 | 17/16/15/14 |
| 1.25" | 31.7 | 16/15/14 |
| 1.5" | 38 | 15/14/13 |
| 1.75" | 44.4 | 14/13 |
| 2" | 50.8 | 14/13/12/11/10 |
| 3.5" | 88.9 | 11/10/9/8 |
| 4" | 101.6 | 9/8 |
| 4.5" | 114.3 | 8/7 |
| 5" | 127 | 7/6 |
| 6" | 152.4 | 6/5 |
| 7" | 177.8 | 5/4 |
Normal packing: 25kgs/carton or bag in bulk Plastic Bag: 0.35kgs,0.5kgs,1kgs
Paper box: 0.5kgs, 1kgs, 2.5kgs, 5kgs, 6kgs, 8kgs, 10kgs
Paper carton: 10kgs, 15kgs, 20kgs, 25kgs, 50 LBS
Plastic bucket: 8lbs, 5kgs, 13kgs, 19kgs,
Other packing are available according to your special requirements

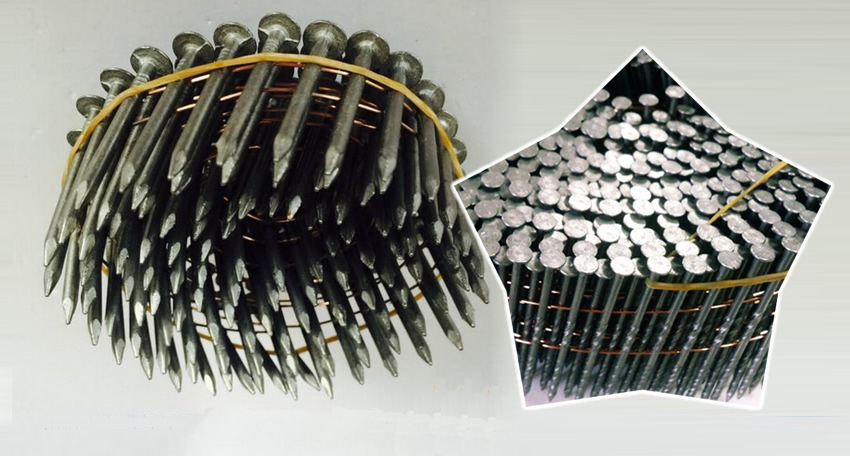

14 Degree - 16 Degree HDG Wire Coil Roofing Nails for Asphalt Shingle Repairing:
Material: Carbon steel
Length: 1/2"--6"
Shank: smooth, ring
Coil angle: 14--16 degrees
Head: Common round, umbrella, flat head
Top wire: 7.0+/-0.5mm
Bottom wire: 15.5+/-0.5mm
Shank diameter (Bwg/Mm): BWG3(6.58mm), BWG7(4.57mm), BWG20(0.89mm).
Head Diameter: BWG6(13.16mm), BWG14(9.14mm), BWG30(3.66mm).
Surface: Brass painted, polished, electric gavanized and HDG galvanized
Color: Yellow,bright
Uses: For building construction, packing and furniture.
Specification In Inch:
| Material | Carbon steel |
| Size | 3/4", 7/8", 1", 1-1/4", 1-1/2", 1-3/4" |
| Model number | 1"-4" |
| Shank | smooth,twisted |
| Head diametre | 0.354"-0.394" (9.0-10.0mm) |
| Shank diametre | 3.06+0/-0.1mm(1.20"+0/-0.004") |
| Coil angle | 14-16 degree |
| Point angle | 40-67 degree diamond |
| Color | yellow,bright |
Collated roofing nails according to materials can be divided into electro galvanized, hot dipped galvanized and stainless steel roofing nails. Clavos supplies the following specifications each.
Electro galvanized steel roofing nails coils:
| Nail length | Head dia. | Count per ctn | count per lb. | Finish | Pcs / coil | Coil / carton | Carton / pallet | CNTR QTY PALLETS |
CNTR(L) |
| 3/4" | 3/8" | 7.2m | 21 | E.G |
120 | 60 | 48 | 24 | 20′ |
| 7/8" | 23 | ||||||||
| 1" | 26 | ||||||||
| 1 1/4" | 34 | ||||||||
| 1 1/2" | 37 | ||||||||
| 1 3/4" | 43 | 40 |
Hot Dip Glvanized twisted shank collated roofing nails:
| Nail length | Head dia. | Count per ctn | count per lb. | Finish | Pcs / coil | Coil / carton | Carton / pallet | CNTR QTY PALLETS |
CNTR (L) |
| 1 3/4" | 3/8" | 7.2m | 34 | H.D.G | 120 | 60 | 48 | 24 | 20′ |
| 1 1/2" | 37 |
Stainless Steel Twisted Shank Nails Collated Coils:
| Nail length | Head dia. | Count per ctn | count per lb. | Finish | Pcs / coil | Coil / carton | Carton / pallet | CNTR QTY PALLETS |
CNTR(L) |
| 1 3/4" | 3/8" | 7.2m | 34 | stainless | 120 | 60 | 48 | 24 | 20′ |
| 1 1/2" | 37 |
Packing:
Packing detail: 120pcs/coil, 60 coils/carton, 48 cartons/pallet
