10D,16D,20D,40D Galvanized Steel Nails Applied for Construction Scaffolding, Cement and Wooden Structure
Common Nails and fastening spikes are popularly used for scaffold and other wooden and concrete structure fastening and securing. Also used for ships and various cases. Clavos supplies steel common nails with a variety of nail length, shanks and head types to meet specific fastening and finishing jobs. Major types include duplex, hardened steel and common round steel.
Steel nails for construction fastening are classified by lengths of 1 inch to 6 inches. Steel nails with a length of over 6 inch are also called fastening spikes.
Common Nail
2" x BWG11 - 20 x 1 Kg packs
2 3/4" x BWG10 - 20 x 1 Kg packs
10D BOX NAIL
10D COMMON NAIL HDG
16D COMMON NAIL HDG
20D COMMON NAIL HDG
40D SMOOTH COMMON (BRITE) NAIL
4D COMMON NAIL HDG
50D SMOOTH COMMON (BRITE) NAIL
50D SMOOTH COMMON (BRITE) NAIL
6D COMMON NAIL HDG
8D COMMON NAIL HDG
COMMON NAIL
Size: 60 x 2.8 mm, 100 x 4.5mm
Packing: Packing N.W. : 55/kg, PALLETS
Common nail (Loose wire nails) as follows
| Type | Size JP X LPP | Size POL X BWG | Size Diam.X mm |
| Common nail | 16x21 | 2x12 | 2,7x48,3 |
| Common nail | 17x27 | 2.1/2x11 | 3,0x62,1 |
| Common nail | 19x36 | 3.1/4x9 | 3,9x82,8 |
| Common nail | 22x48 | 4.1/4x5 | 5,4x110,4 |

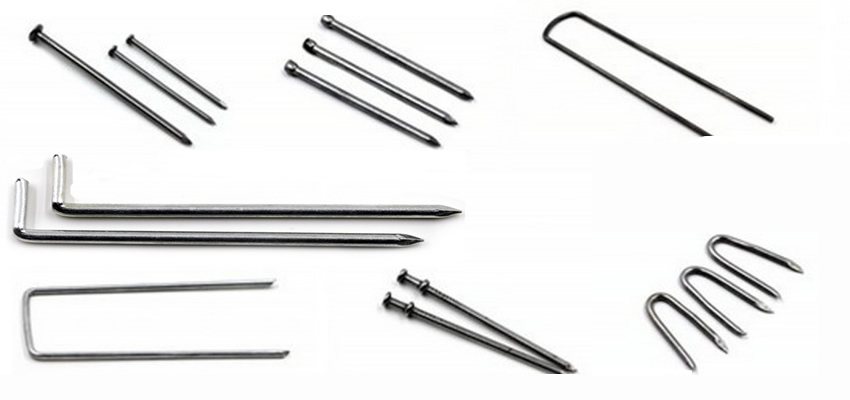

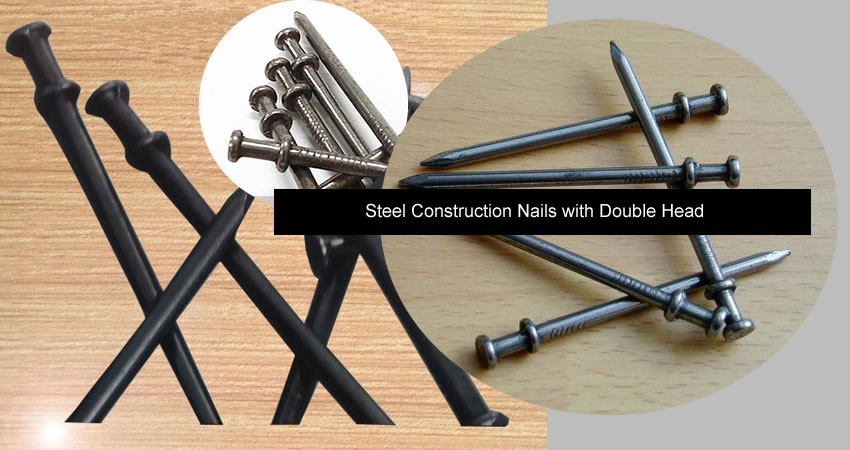

Duplex Nails, Double Headed Scaffolding Nails
Hard metal steel nails with double heads, also called Duplex Nails. Used to build scaffolding, scenery, and other temporary structures. This type of nail is driven to the first head and the second nail is used later to pull it out. Steel duplex nails are strong, not easy to rust, can be used without drilling hole in common wall construction.
Material: Q195, Q235
Shank diameter: 2.8mm-4.5mm
Length: 2"-4"
Finish: polished /bright mainly
Head: flat
Packing: 5kg per box, 1kg per box or bag, 500g per bag, 25kg per carton and as your request
Application:
Steel scaffolding duplex nails are mainly used in the connections of concrete wall, ground and surface materials and infrastructure fixed.

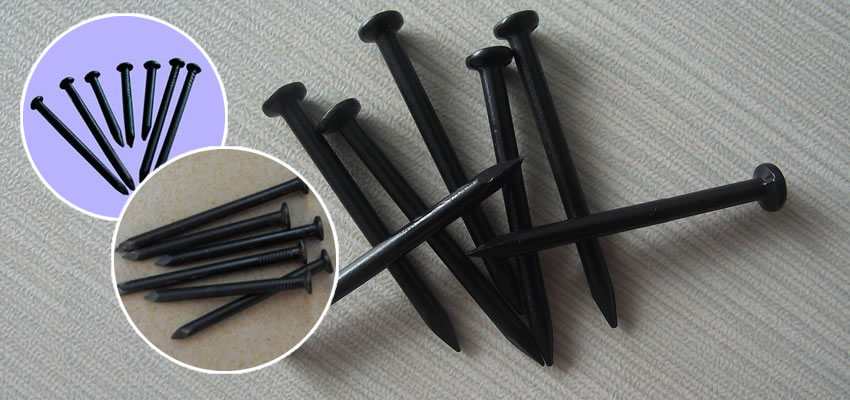

Hard, Strong and Durable Black Steel Nails for Cement Wall Construction
Material:45# steel wire
Color: White, bright, black
Surface finished: Galvanized steel, polished, black steel
Length: 1-6 inches
Shank diameter: 1.8mm-8mm
Head diameter: 2mm-10mm
Shank types applied for cement nails are: Smooth, twisted, grooved shank
Head: Flat head, round head

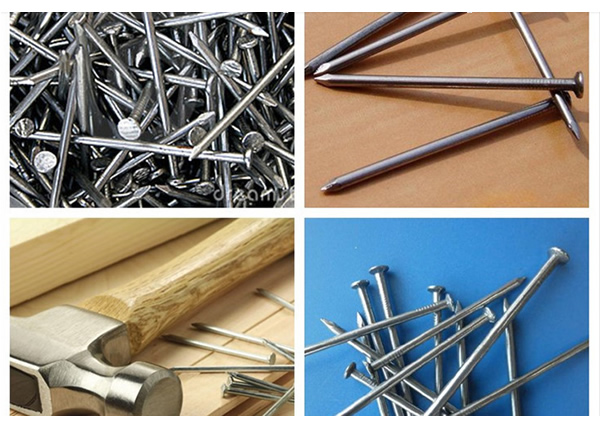

Polished Bright Steel Flat Round Head Common General Construction Nails
Type of head: Flat Round head.
Type of shank:Smooth shank, diamond point.
Surface finishing:Bright,Galvanized finished,Electro galvanized.
Usage: For construction,wooden case and furniture.
Specifications of Polished Steel Bright Common Round Construction Nails:
| Designation | Inch | Wire gauge | Head width | Head thickness | Length | Length of end |
| 8# | 4 | 40.2±0.03 | 8.0±0.1 | 2.5±0.1 | 102±0.1 | 7.5±0.5 |
| 10# | 3.5 | 3.75±0.03 | 7.5±0.1 | 2.5±0.1 | 89±0.1 | 6.5±0.5 |
| 11# | 3 | 3.22±0.03 | 7.05±0.1 | 2.2±0.1 | 76±0.1 | 5.5±0.5 |
| 12# | 2.5 | 3.05±0.03 | 6.0±0.1 | 2.0±0.1 | 60±0.1 | 5.0±0.5 |
| 13# | 2 | 2.75±0.03 | 5.5±0.1 | 2.0±0.1 | 51±0.1 | 5.0±0.5 |
| 14# | 1.75 | 2.42±0.03 | 4.8±0.1 | 1.5±0.1 | 45±0.1 | 5.0±0.5 |
| 15# | 1.5 | 1.90±0.03 | 4.3±0.1 | 1.2±0.1 | 38±0.1 | 4.0±0.5 |
| 16# | 1.25 | 1.72±0.03 | 4.0±0.1 | 1.0±0.1 | 32±0.1 | 4.0±0.5 |
| 17# | 1 | 1.72±0.03 | 3.5±0.1 | 1.0±0.1 | 25±0.1 | 4.0±0.5 |
| 18# | 0.8 | 1.52±0.03 | 3.5±0.1 | 0.8±0.1 | 19±0.1 | 3.5±0.5 |
