Clavos Supplies Nails Wire Drawing Machine, Wire Nails Making Machine, Nails Polishing Machine, Rolling Machine And Coiling Devices Of Nails.

Clavos have five steps for coiled screw nails production, as following illustrations.
1. Steel Nail Wire Drawing;
Wire drawing for nails

2.Nails making;
Nails making

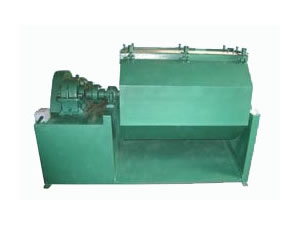

3.Polishing of nails;
Polishing of nails
4.Rolling of nails rolling;
5.Coiling of nails.



Popular nail making machine: 1-6 inch Nails Making Machine.



This automatic machine is used for produciton line of construction nails with nNail length from 10mm to 210mm. Featuring high speed,low noise and easy operation.

Benefits:

 1 .Both of the scrap iron wire and the new steel rod can be used to make nails.

2 .This nails machine can feed the materials automatically.

3 .This nails machine has the features of high speed, low noise, less impact.

4. All the main components are made of quality steel, such as shaft, cams and gear.

5. The nails made by the machine will be straight, the point of the nails will be sharp and symmetrical, the nails cap will be round.

Nails Specifications Manufactured by The Machine:

Model M-6C M-5C M-4C M-3C M-2C M-1C
Max diameter of nail 6mm 6mm 4.5mm 3.1mm 2.8mm 1.6mm
Min diameter of nail 3.1mm 2.8mm 2.8mm 1.8mm 1.2mm 0.9mm
Max length of nail 180mm 150mm 100mm 70mm 50mm 25mm
Min length of nail 70mm 50mm 50mm 30mm 16mm 9mm
Nail making speed 220pcs/min 220pcs/min 260pcs/min 320pcs/min 350pcs/min 450pcs/min
Motor power 10kw 5.5kw 4kw 3kw 2.2kw 0.8kw
LxWxH 3x1.8x1.9 m 2.4x1.7x1.65m 2.2x1.6x1.65m 2x1.4x1.4 m 1.7x1.3x1.4m 1.5x1.3x1.2m
Weight 5.5 T 2.2 T 2 T 1.8 T 1.45 T 1.2 T
